Hikvision DS-2CD2346G2H-IU 2.8mm, Black...

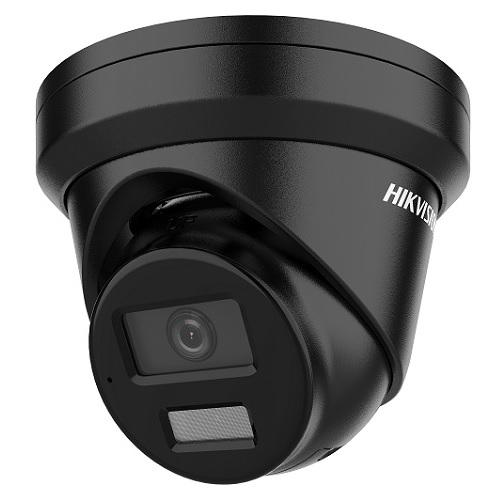

Hikvision DS-2CD2346G2H-IU 2.8mm, Black

DS-2CD2346G2H-IU: 4 MP Powered by Darkfighter Fixed Turret Network CameraFeaturesModel: DS-2CD2346G2H-IU (2.8mm), blackHigh quality imaging with 4 MP resolutionExcellent low-light performance with powered-by-DarkFighter technologyClear imaging against strong back light due to 120 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle targets classification based on deep learning-U: Built-in microphone for real-time audio securityWater and dust resistant (IP67SpecificationsCamera• Image Sensor: 1/3" Progressive Scan CMOS• Max. Resolution: 2688 × 1520• Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR• Shutter Time: 1/3 s to 1/100,000 s• Day & Night: IR cut filter• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens• Lens Type: Fixed focal lens, 2.8mm• Focal Length & FOV: 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°• Lens Mount: M12• Iris Type: Fixed• Aperture: F1.0• Depth of Field: 2.8 mm: 1.9 m to infinite• DORI 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 mIlluminator• Supplement Light Type : IR• Supplement Light Range Up to 30 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)• Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 *Third stream is supported under certain settings.• Video Bit Rate 32 Kbps to 8 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main stream and sub-streamAudio• Audio Type: -U: mono sound• Environment Noise Filtering -U: Yes• Audio Compression -U: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/AAC-LC• Audio Bit Rate -U: 64 Kbps (G.711ulaw/ G.711alaw)/ 16 Kbps (G.722.1)/ 16 Kbps (G.726)/ 32 to 192 Kbps (MP2L2)/ 8 to 320 Kbps (MP3)/ 16 to 64 Kbps (AAC-LC)• Audio Sampling Rate -U: 8 kHz/ 16 kHz/ 32 kHz/ 44.1 kHz/ 48 kHzNetwork• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported• Client: iVMS-4200, Hik-Connect, Hik-Central• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 120 dB• SNR > /= 52 dB• Day/Night Switch: Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Image Parameters Switch: yesInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB• Built-in Microphone: -U: Yes• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)General• Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W• Material: Cover: Metal, main body: Metal• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")• Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")• Weight Approx. 550 g (1.2 lb.)• With Package Weight Approx. 800 g (1.8 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017• Environment: CE-RoHS: 2011/65/EU• Protection IP67: IEC 60529-2013
