Power supply 24V, 10A, 240W...

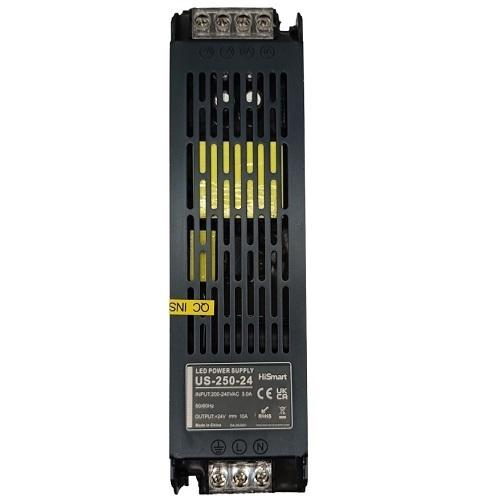

Power supply 24V, 10A, 240W

LED power supply 24V, 10A, 240W.


Features:
Slim type switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload.
Application: LED lights, LED luminous subtitles, LED mobile sign.


Specifications:
Type: switching power supply.
Input range: AC: 200-240V.
Frequency: 50/60Hz.
Output voltage DC: 24V.
Rated output current: max 10A.
Output power: 240W.
AC current: 3.0A / 230V.
Ripple and noise: 200mV p-p.
Efficiency: 91%.
Leakage current: <2mA / 240V AC.
Working temperature: -20°C~+50°C.
Working humidity: 20%-90%RH.
Dimension: 208x50x29mm.
Shell material: aluminum.
Weight: 0.36kg.


Warranty: 24 months.
