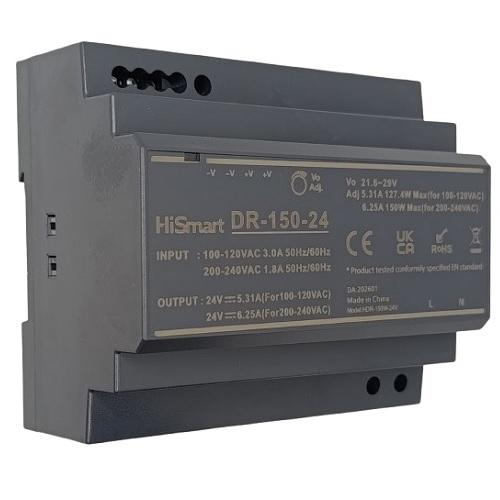

Power supply 24V, 6.25A, 150W, DIN...

Power supply 24V, 6.25A, 150W, DIN

Power supply 24V, 6.25A, 150W, DIN.


Features:
Compact switching power supply designed for mounting on a standard 35 mm DIN rail.
Protection: overload, overvoltage, and short-circuit protection.
Cooling by free air convection.
No load consumption: < 0.3W.
With an LED indicator.
Thanks to its ultra-slim design, the unit can be conveniently installed in electrical distribution and automation cabinets where space saving is important.
Suitable for industrial, automation, control, and electrical distribution systems.


Specifications:
Type: switching power supply.
Input range AC: 100-240V.
Frequency: 50/60Hz.
Output voltage DC: 24V.
Rated current: 6.25A.
Max. power: 150W.
AC current: approx. 3A/115V, approx 1.8A/230V.
Ripple and noise: 240mvp-p.
Efficiency: 89%.
Working temperature: -30°C~+60°C.
Housing material: plastic.
Insulation: Class II.
Dimensions: 105x90x55 mm.
Weight: 340 g.


Warranty: 24 months.
