Standalone Access Control with Keypad and Card Reader, 125KHz EM...

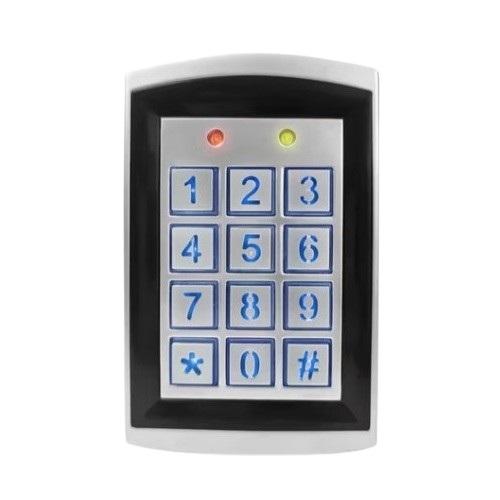

Standalone Access Control with Keypad and Card Reader, 125KHz EM

Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.


Features:
Compact single entry standalone access control with keypad and remote card reader.
The RFID access control is designed for extreme weather conditions (-30°C~+70°C), suitable for outdoor as well as indoor use.
Die-cast zinc alloy housing ensures a robust and precisely formed construction that performs reliably under intensive use. Anti-tamper alarm.
The controller’s electronics are encapsulated in epoxy resin, providing reliable protection against moisture, dust, vibration, and tampering attempts.
Backlit keypad (the backlight can be switched on/off), convenient to use in the dark.
Supports two relays (e.g., for a door and a garage gate).
Access control in three ways: by card, by PIN code, or by card + PIN.
Supports 125 kHz EM cards.


Technical specifications:
Number of users (cards/PINs): 1010 (zone1: 1000 cards/PIN; zone2: 10 cards/PIN).
Access modes: card, PIN, card+PIN.
PIN length: 2-6 digits.
Operating frequency: 125KHz (EM).
Operating voltage: 12-24 V DC / 12-24 V AC..
Idle current: <30mA.
Active current: <160mA.
Card reading distance: ~5 cm.
Number of doors supported: 2.
Wiring connections: relay outputs, exit buttons, doorbell.
Relay: 2 (No, Nc, Com contacts).
Adjustable relay output time: 1-99 seconds (5 seconds default).
Safety class: IP66.
Installation: wall mount.
Connection: Terminal block.
Material: die cast zinc alloy.
Operating temperature: -30°C~+70°C.
Dimensions: 120 x 76 x 22 mm.
Weight: 455g.

.
Warranty: 24 months.
