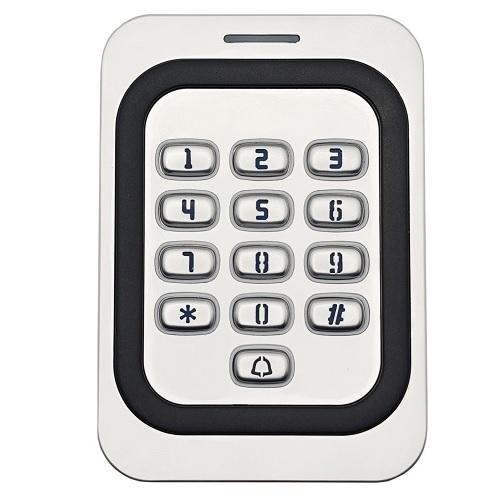

Standalone Access Control with Keypad and Card Reader, EM/ Mifare, Tuya, Wi-Fi

Standalone access control with integrated keypad and card reader, 125KHz EM/ 13.56MHz Mifare, Wi-Fi, Tuya.


Features:
This is a compact standalone access control unit with a keypad and proximity card reader, supporting control via the Tuya (Smart Life / Tuya Smart) app over Wi-Fi.
Multiple access modes: using a smartphone (with the Tuya app), RFID card, or PIN code.
Remote management is performed via the Tuya smart app (on a phone or tablet): you can conveniently add or delete users, set time restrictions, create temporary (one-time or periodic) codes, view door opening logs, and so on.
The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use.
Metal case anti-vandal.
Backlit keypad for use in the dark.
Supports 10 visitor users with 1 to 10 entries.
Supports 125KHz EM or 13.56MHz Mifare cards.


Technical specification:
Number of users (cards/PINs): 2000.
PIN length: 4-6 digits.
Supported card frequency: 13.56MHz (Mifare) or 125KHz (EM).
Operating voltage: 12V DC.
Idle current: <30mA.
Card reading distance: 2~5 cm.
Protocol: Wiegand 26 bit.
App: Tuya Smart / Smart Life (Android, iOS).
Number of doors supported: 1.
Wiring connections: relay output, exit button, door contact, Wiegand input/output.
Relay: 1 (lock relay, NO/NC/COM contacts).
Adjustable relay output time: 0-99 seconds (default 5 seconds).
Lock output load: up to 3 A.
Mounting: wall-mounted.
Material: zinc alloy.
Safety class: IP66.
Operating temperature: -40°C to +60°C.
Relative humidity: 10%–90% RH.
Dimensions: 109 x 76 x 22 mm.
Weight: 400 g.
Color: silver, black.

.
Warranty: 24 months.
